Front Illuminate Channel Letters

FeaturedBest Selling

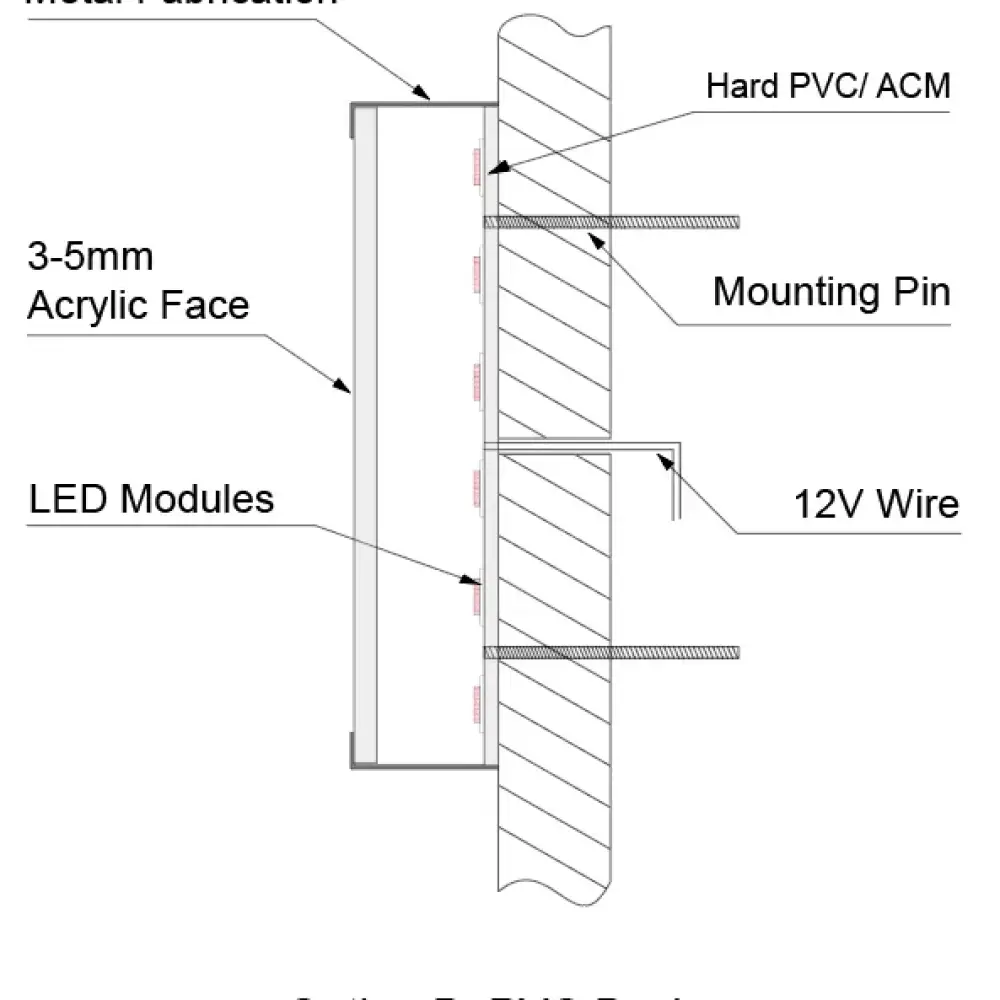

Face: 3mm / 4.5mm Acrylic
Body: 1mm 304 grade stainless
steel fabricated (Option: 316 Marine
Grade)
Finish: Plain silver, polished / brushed,
electrical plated, powder coated,
UV printed, etc.

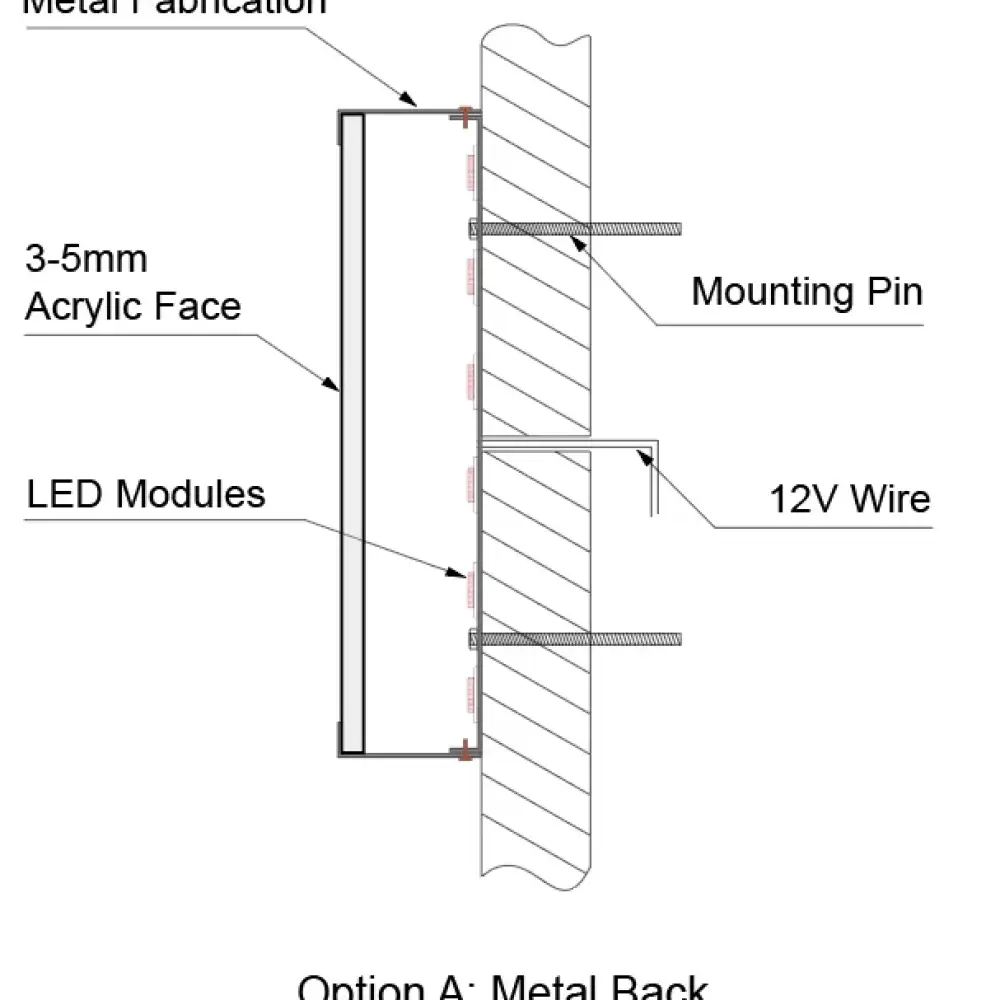

Back: Metal base
Illumination: LED modules 3,000K ~
10,000K (Dimmer available at extra cost)
Installation: Installation template included,
flush mounting/ stand-off
Power Supply: 12v-240v
Colour / Size / Shape: Customized

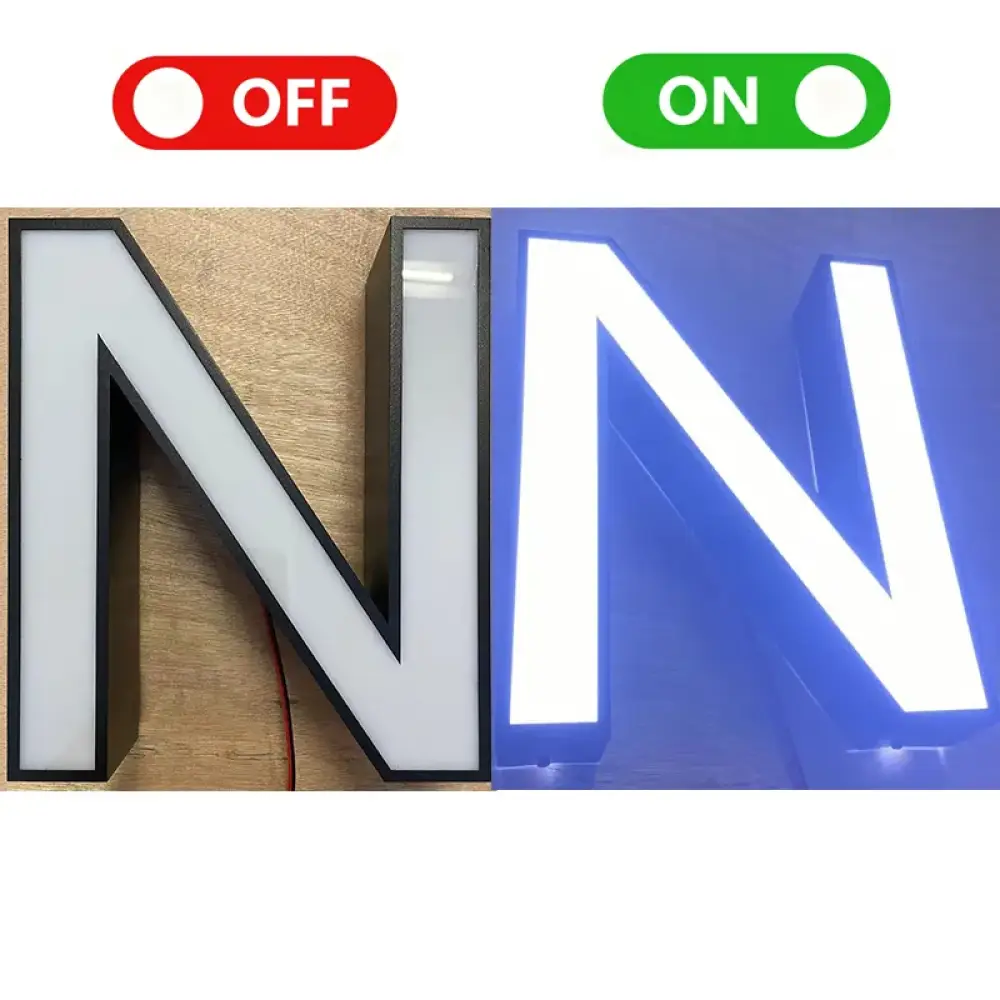

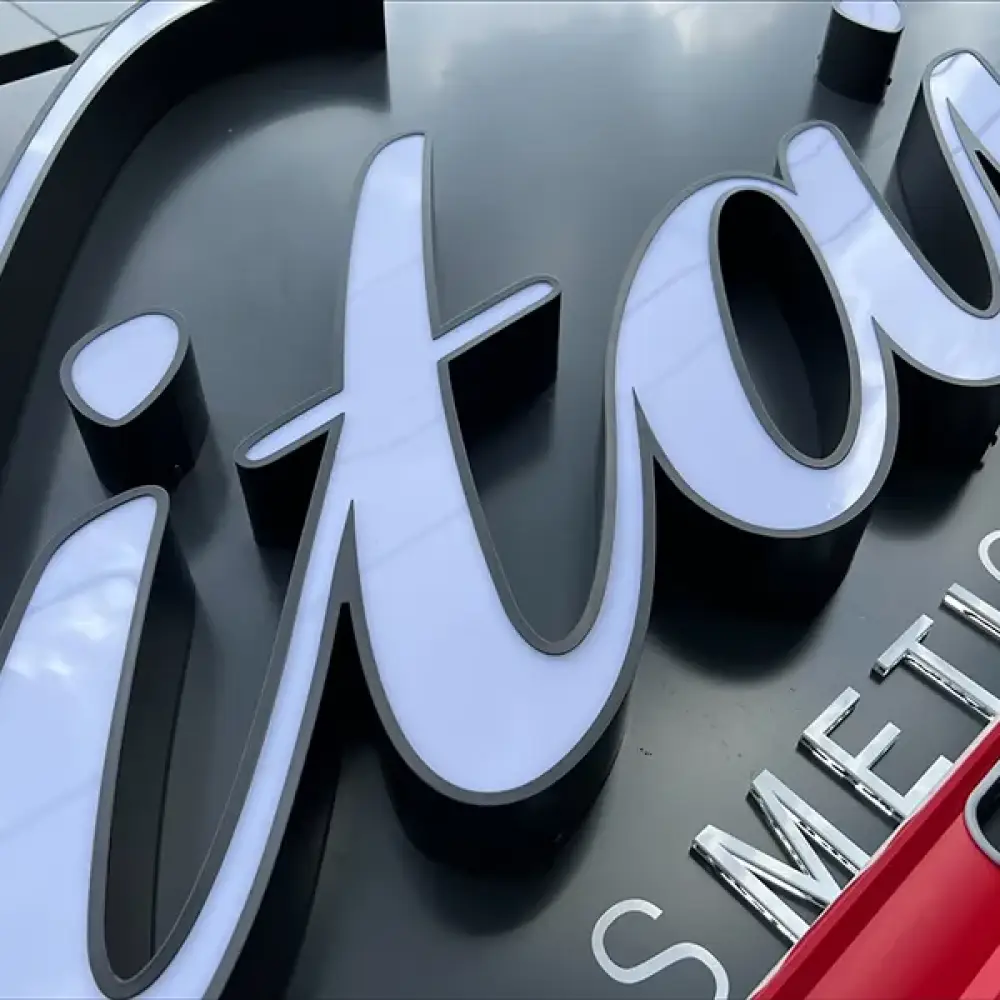

Our stainless‑steel trimmed LED channel letters feature premium metal finishes, solid structure and outstanding weather resistance.
Made of 304 stainless steel, they deliver bright, even front lighting for storefront signage.
While durable and high‑end‑looking, they are relatively heavy, with higher production costs and scratch‑prone surfaces.
Ideal for outdoor commercial projects, not recommended for load‑limited rooftops or ultra‑thin small characters.

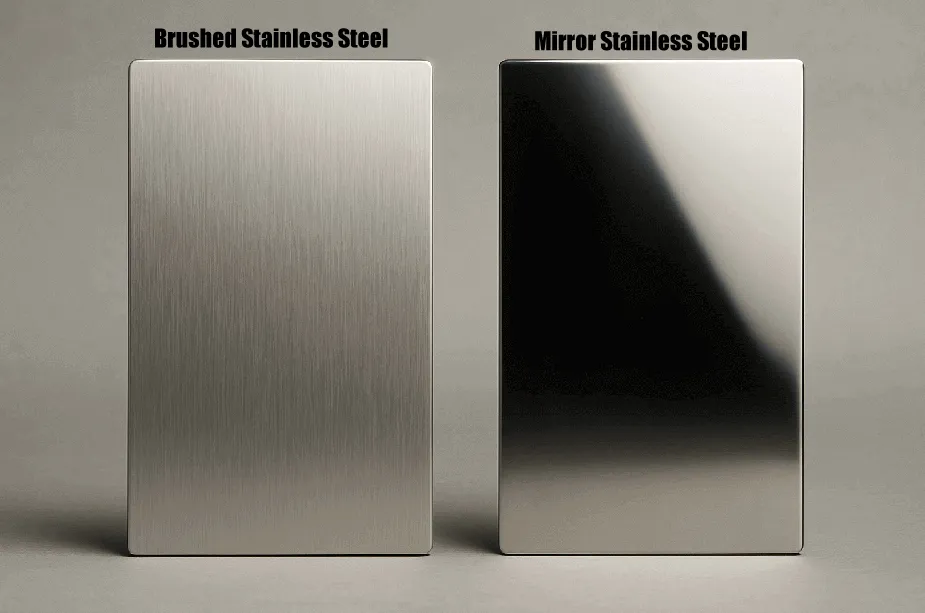

The side profile is normally made of Mirror Stainless Steel or Brushed Stainless Steel.

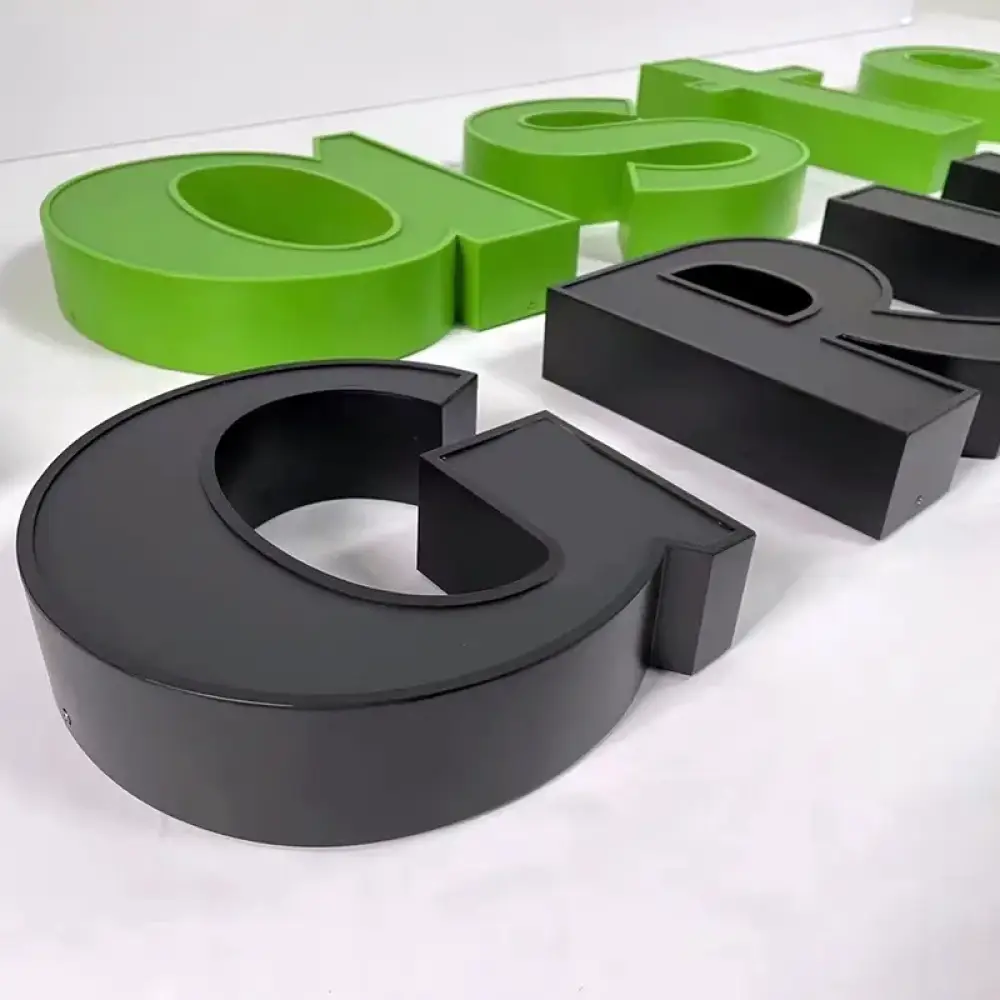

Custom powder coating colors are available based on provided Pantone codes.

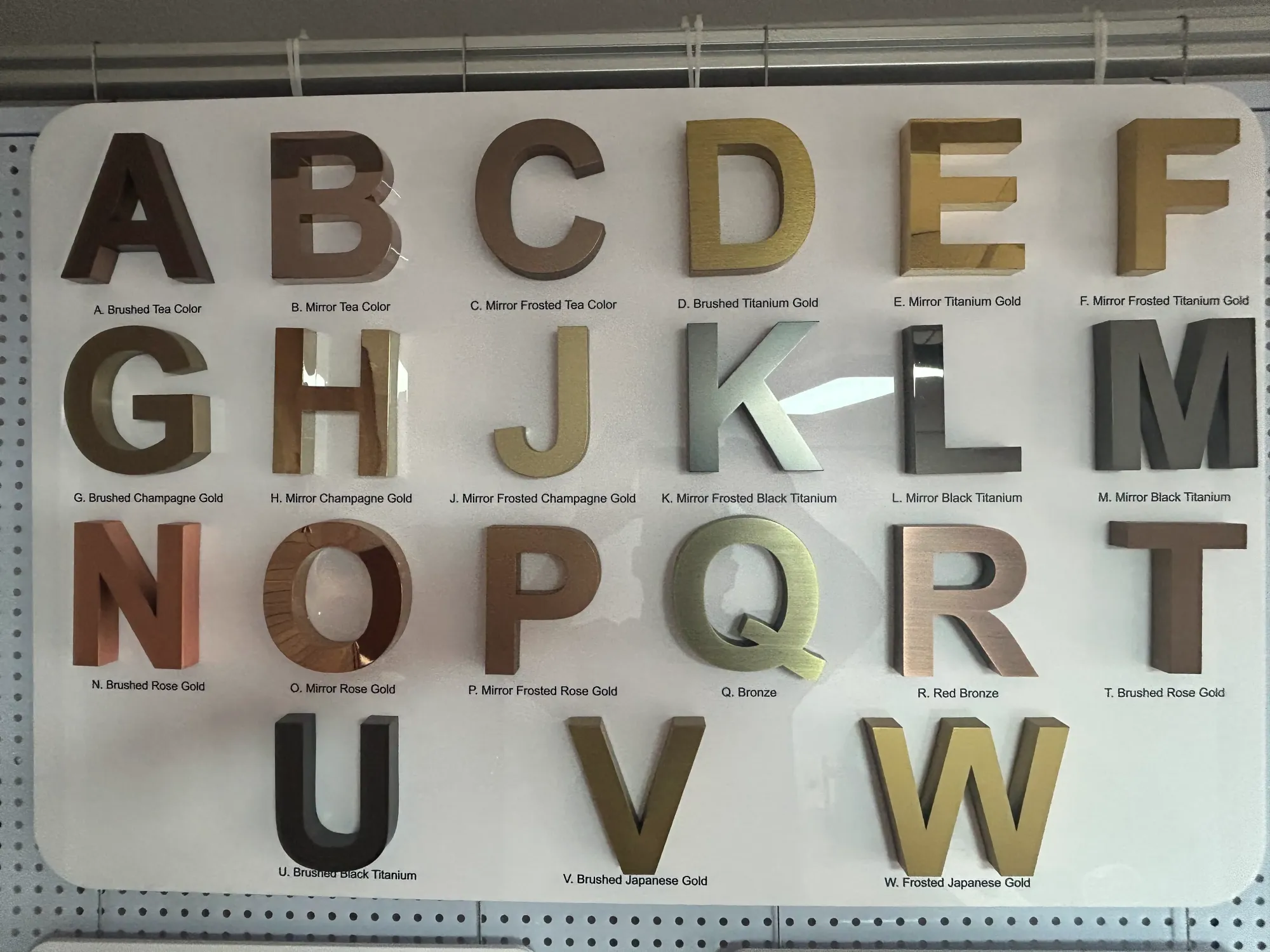

For special metal finishes such as titanium, rose gold, champagne gold or black steel, we recommend electroplating.
For antique finishes like green antique copper, yellow bronze or red bronze, water plating is suitable, which generally requires around 10 production days.

LED we have different option of brightness, we use the best brand in China------Blueview.

Production Process Requirements：

Item
Requirement

Stroke Thickness
> 10mm

Chinese Character Size
> 10 cm

English Letter Size
> 6 cm

Artistic / Decorative Font Size
> 20 cm

Overall Letter Size
Not recommended to exceed 3 meter

Font size corresponds to height：

Font Size	Font Height
20-40cm	5cm
40-60cm	6cm
60-70cm	6-8cm
>70cm	8-10cm

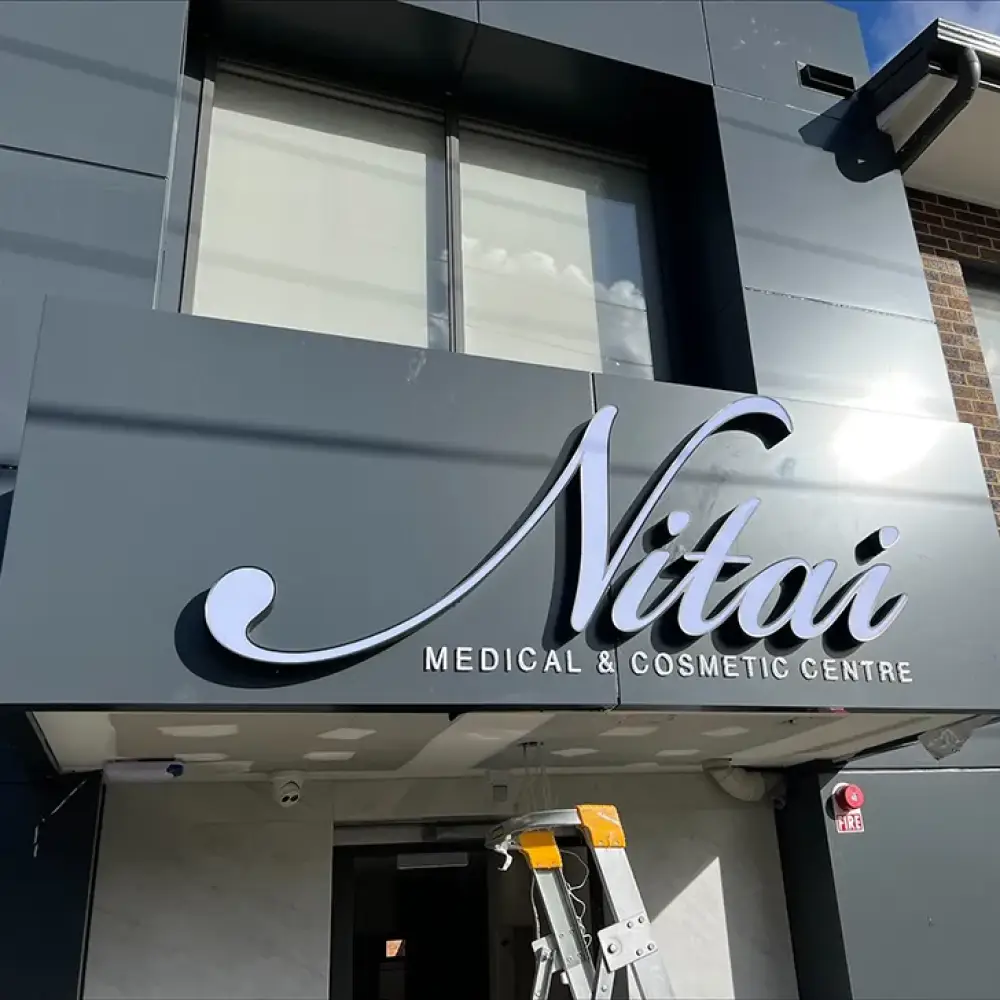

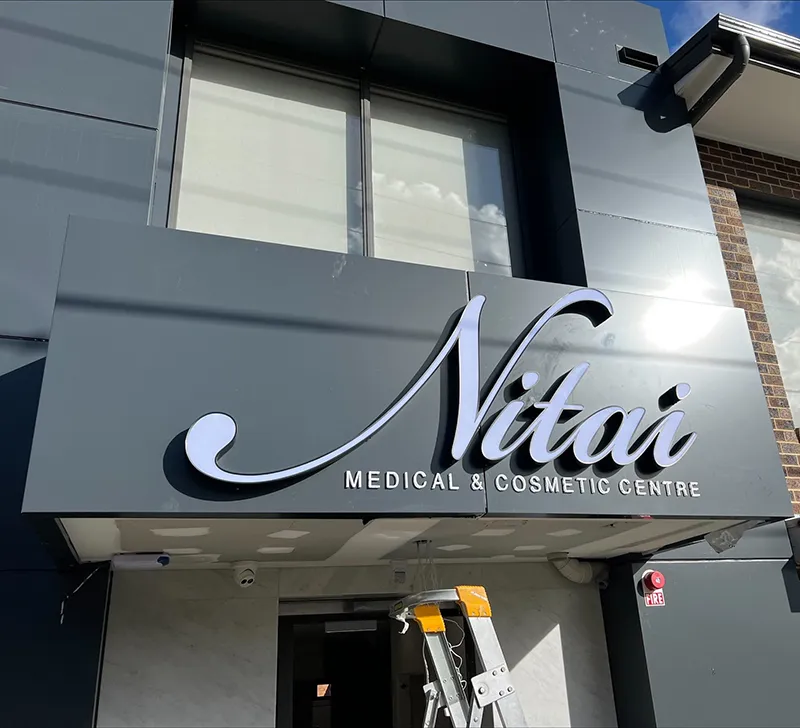

Suitable: Outdoor storefronts, high‑end retail stores, restaurants, hotels, projects requiring premium metallic look and long‑durability signage.
Unsuitable: Rooftop signs with limited load‑bearing capacity, tight‑budget projects, signs with ultra‑small thin‑stroke characters.
